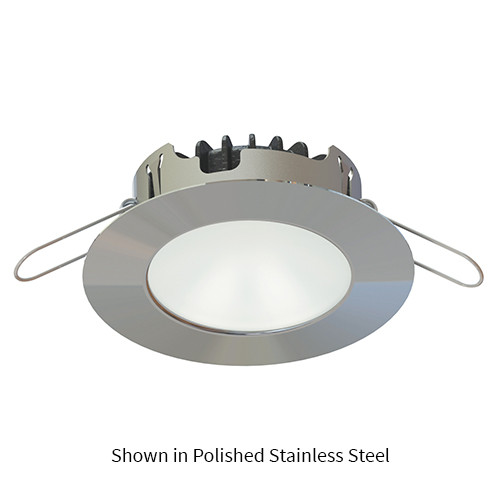

Carve Bi-Color Power LED 10-40VDC

$116.10
Weight:
1.00 LBS
Shipping:
Calculated at checkout
Quantity:


Product Description

Carve PowerLED, 10-40VDC, 4.7W, IP65

Featuring 2-wire power & dimming, Carve easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs). Carve offers single or bi-color dimming when paired with Imtra's single or dual channel PWM dimmer module. Carve features a small diameter, ultra-flat, molded square bezel in a mirror polished, matte chrome or custom finish. Carve conveniently & firmly installs with self-adjusting stainless steel springs. Made in the USA and covered by a 5-year warranty!

  • Small diameter ultra-flat molded square/square bezel square bezel
  • Convenient 2-wire power & dimming
  • Bi-color dimming using single momentary switch (Bi-color models only)
  • Integrated current controlled drive circuitry
  • Convenient spring mounting (no screws needed)
Housing Finish/Material Black Electrophoretic Aluminum
Certifications & Compliance CE-EMC, ROHS
Integrated Switch No
Output Color Warm/Red, Warm/Blue, Cool/Red, Cool/Blue
Lifetime Hours 50,000 hrs
Class Class III
Dimmer Compatibility ILIM80130, ILIM80140
Dimmer Control Interface Momentary Push-Button
Cut-out Dimensions 2.65" (67mm)
Trim Ring (Bezel) Dimensions 3.14" x 3.14" (80 x 80mm) dia
Trim Ring (Bezel) Finish/Material Matte Chrome or Polished Chrome
Halogen Equivalency 25W
Input Voltage 10-40VDC
Dimensions See dimensional drawing
Warranty 5 years
Power Consumption 4.7W
Recessed Depth 1.05" (27mm)
Lens Material Frosted glass
Ingress Protection IP65 (front face only)
Dimming Range 5-100%
Luminous Flux 183 lms
Driver Integrated
Install Location Ceilings (interior)
Electrical Protections Reverse Polarity, Transient & Spike Protection
Correlated Color Temperature (CCT) 2800K (White LED)
Color Rendering Index (CRI) 85
Approximate Ship Weight (lbs) 1



Sku's Available ILIM51301, ILIM51302, ILIM51401, ILIM51402, ILIM51501, ILIM51502, ILIM51601, ILIM51602







Warranty Information

Five year manufacturer's warranty
