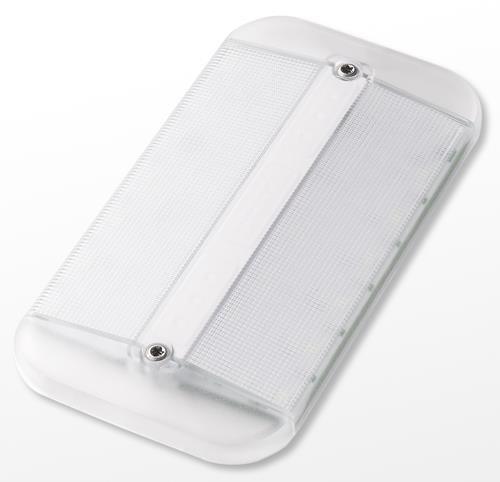

F17 Utility LED

MSRP: $230.00
$207.00
(You save $23.00 )
SKU:
IL6356
Availability:
Usually ships within 5 business days
Weight:
1.13 LBS
Shipping:
Free Shipping

The F-16 & F-17 have a unique low-profile housing, making them the ideal choice for a number of installations, from utility and engine rooms to hardtop or accent lighting. Designed originally for refrigerated and commercial vehicles, this sleek LED can withstand the harshest of conditions.  It is constructed with a fully water-tight housing and is designed to withstand temps ranging from -40°C - +50°C (-40°F - +122°F).  Light output is equivalent to a 20W halogen!  Available with cool white LED.  For warm white applications, please inquire with Imtra.

Features & Benefits:

  • Ultra slim surface-mount design
  • Solid-state circuitry:  Shock and vibration proof
  • Withstands temperature extremes
  • Integrated drive electronics:  No complicated wiring
  • Multi-voltage:  For 12V or 24V systems
  • No radiated heat:  Safe to touch
  • Completely water-proof

Product Details

Finish: White
Housing Material: Polished Anodized Aluminum
End Cap Material: White ABS
Dimensions (L x W x H): 7.87 x 4.72 x .55 in. (200 x 120 x 14mm)
Voltage: 10-30VDC
Power Consumption: 8W
Beam Angle: 110°
Luminous Intensity: 300 Lumens
Kelvin Temp.: 6000K
Working Life: 50,000 hrs (70% lumens maintenance)
Electrical Protections: Reverse Polarity
Wire Size: See Chart
Integral Switch: No
Dimmer Interface: No
Mounting Method: Screw-mount
Ingress Protection: IP67
Manufacturer: Frensch
2 Year Manufacturer's warranty (parts) 1 Year Manufacturer's warranty (finish)
