"Mini" LED Bulb BA15D

MSRP: $16.95
$11.66
(You save $5.29 )
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

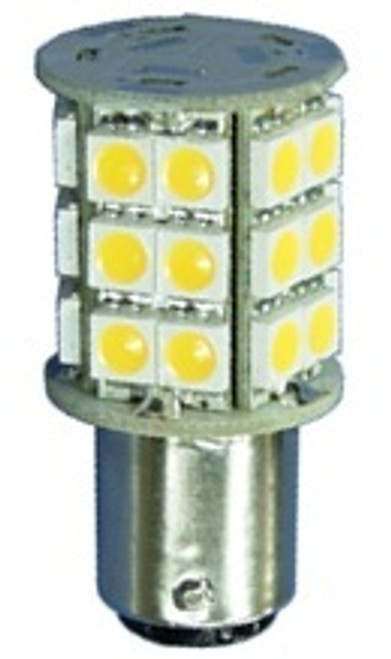

"Mini" LED Replacement Bulb 10-30VDC (1.5W), Directional, BA15d Socket


The "Mini" G4 Bayonet is the perfect LED replacement bulb for back-mounted double-contact bayonet sockets commonly found in traditional bell-shaped reading lights and chart lamps.  It is also offered in red color and with BA15s single contact (1156) base as well.  This LED bulb is designed to work with either 12VDC or 24VDC systems.



Features & Benefits:

  • High output SMD LEDs
  • Constant-current drive topology
  • Very low power consumption
  • Over-voltage protection
  • No radiated heat
  • Wide voltage input range
  • Optimized viewing angle for reading & chart lights
Fits Socket: Bayonet BA15s (#1142)
Typical Applications: Reading and Chart Lights
Dimensions: 1.05 in. (26.6mm) x 1.43 in. (36.3mm) incl. base
Input Voltage: 10-30VDC
Power (Watts): 1.5W
Current Draw: 125mA/12V
63mA/24V
LED Emitting Color: Warm White or Red
LED Type/Quantity: 6 x SMD LEDs
Beam Angle (FWHM): 120º (3 directions)
Light Output (Lumens): 72 lms
Warranty: 2 Years

Available Models : ILBA1142-06W, ILBA1142-06R
