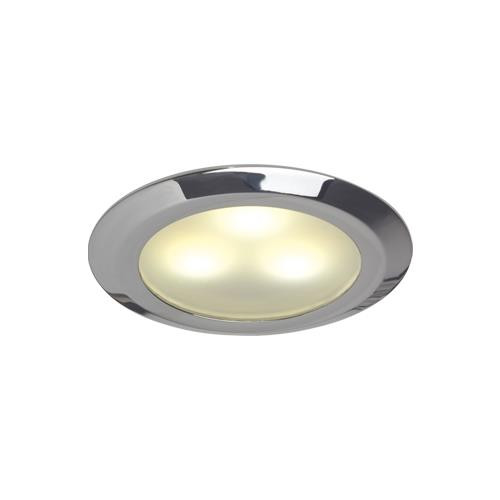

  • Shown in Matte Chrome Finish

Norden (Slave) Bi-Color LED, 10-30VDC 3W Warm White/Red

$143.10
Weight:
1.00 LBS
Shipping:
Calculated at checkout
Quantity:


Product Description

Norden 10-30VDC 3W Warm White/Red (Slave) controlled with Norden Master

Combine up to fifteen Prebit® Norden Slave units to a single Norden Master for complete synchronized on/off and bi-color dimming control. The Master unit has the built in momentary switch and the entire group (of Slave units) are controlled from there. Or wire in unlimited remote momentary switches for control from any point in the room!

Click here for Master Version

  • Surface mount design, no cut-out required
  • Combine up to 15 Slave units in a group, controlled by a single Master unit
  • Switch between white or red LED via Norden Master unit or remote switches  (Norden Master required)
  • Each color infinitely dimmable via Norden Master unit or remote switches (Norden Master required)
  • UV resistant satin-finish acrylic lens
Housing Finish/Material Gold, Matte Chrome or Chrome/Plastic & Aluminum
Lens Material Satin Acrylic
Base Dimensions 2.36" (60mm) dia x 0.79" (20mm) ht
Dimensions 2.36" (60mm) dia x 0.79" (20mm)
Integrated Switch No
Input Voltage 10-30VDC
Halogen Equivalency 20W
Power Consumption 3W
Driver Integrated Constant Current
Output Color Warm White/Red
Luminous Flux 192 lms
Correlated Color Temperature (CCT) 3000K/Red
Color Rendering Index (CRI) 85
Beam Angle 65dg
Lifetime Hours 50,000 hrs. (L70)
Dimmer Compatibility Requires a single Master unit
Dimmer Control Interface Via Master unit or remote momentary switches (Master unit required)
Dimming Range 0-100%
Mounting Method Screws
Install Location Surface Mount
Ingress Protection IP20
Class III
Electrical Protections Transient, Reverse Polarity
Manufacturer Prebit
Warranty 3 Years / 1 Year Finish

Available SKUs ILPB23163005, ILPB23163007, ILPB23163009

Click here for dimensional drawing



Warranty Information

3 year manufacturer's warranty/1 year finish
