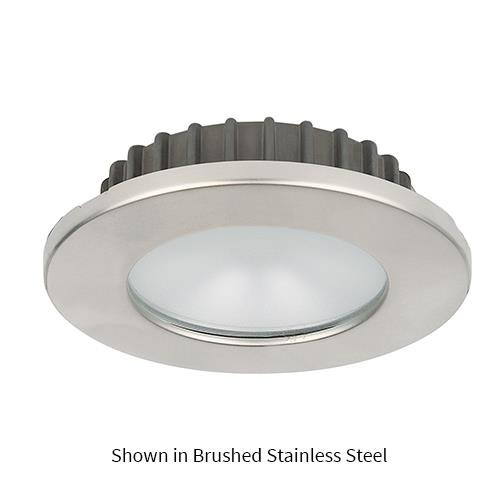

Tide Bi-Color Power LED with Base, 10-40VDC

Imtra Lights

$120.00
SKU:
ILIM57300.
Availability:
Typically ships in 3-4 weeks
Weight:
0.25 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Tide Bi-Color Power LED with Base, 10-40VDC

Featuring 2-wire power & dimming, Tide easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs.). This model features a stylish base with built-in on/off switch. It  is a good choice for general lighting on smaller boats or as under cabinet lighting for any size vessel.  Made in the USA and covered by a  5 year warranty!

  • Stylish base with built-in switch
  • Twist-on round stainless steel bezel
  • Convenient 2-wire hook-up
  • Bi-color models available
  • Integrated current controlled drive circuitry
Trim Ring (Bezel) Finish/Material White or Stainless Steel
Housing Finish/Material Black Electrophoretic Aluminum
Lens Material Frosted glass
Trim Ring (Bezel) Dimensions 2.86" (73mm) dia
Dimensions See dimensional drawing
Integrated Switch No
Input Voltage 10-40VDC
Halogen Equivalency 10W
Power Consumption 3.2W
Driver Integrated
Output Color Warm White/Red or Cool White/Blue
Luminous Flux 112 lms
Correlated Color Temperature (CCT) 2800K (White LED)
Color Rendering Index (CRI) 85
Lifetime Hours 50,000 hrs
Dimmer Compatibility ILIM80130, ILIM80140
Dimmer Control Interface Momentary Push-Button
Dimming Range 5-100%
Install Location Interior Surface Mounting
Ingress Protection IP40 (applies only to frontal water exposure, i.e. Exposed surface)
Class III
Electrical Protections Reverse Polarity, Transient & Spike Protection
Certifications & Compliance CE-EMC, ROHS
Manufacturer Imtra
Warranty 5 Years / 1 Year Finish



Available SKUs ILIM57300, ILIM57301, ILIM57600, ILIM57601



5 year manufacturer's warranty/1 year finish
