Zipwake Interceptors

$600.00 $528.00
(You save $72.00)
Weight:
3.00 LBS
Shipping:
Calculated at checkout
Quantity:

Product Description

STATE OF THE ART INTERCEPTORS

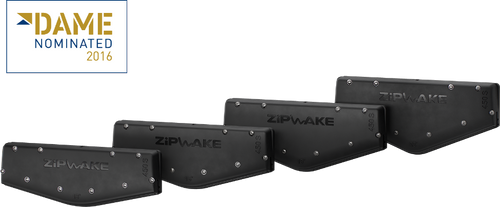

Series S incorporates a state-of-the-art family of four durable, fast-acting interceptors. This first-ever modular design made for mass production makes the interceptors durable, affordable and perfectly adapted to any planing or semi-planing boat between 6m and 18m (20-60ft).

The components have all been meticulously engineered to withstand impact as well as avoid water ingress, which greatly reduces the risk of costly maintenance and downtime. Through a calibration-free submersible electric servo within the interceptor unit, interceptor or blade actuation takes place. Its natural water cooling provides excellent working conditions for the brushless DC servo motor, which runs on 12-32 volts. The blade stroke takes 1.5 seconds, outperforming conventional trim tabs by at least a factor of 5.

Installation is made easy with an integral mounting plate and the option of a concealed or above-waterline, self-sealing, thru-hull cable fitting. The preferred mounting option is achieved by simply routing the servo cable differently. Each interceptor comes with the thru-hull cable fitting, cable covers and a practical drill template.



** Note that Interceptors are sold individually to provide additional capacity to a kit box.**

Click Here if you need to order a complete ZIPWAKE Kit Box.

Click Here for the ZIPWAKE SIZING GUIDE



 SPECIFICATIONS

Model IT300-S / IT450-S / IT600-S / IT750-S
Length 300 (12) / 450 (18) / 600 (24) / 750 (30) / mm (in)
Weight 2.1(4.6) 2.8 (6.2) 3.5 (7.7) 4.0 (8.8) kg (lbs)
Max. Boat Speed 60 knots
Blade Stroke 30 mm (1.2 in)
Blade Rate 20 mm/s (0.8 in/s)
Thru-Hull Cable Fitting Concealed or above waterline
Servo actuator SU-S
Cable Length 3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material PUR
Connector M12 5-pin circular
Connector Diameter 14.5 mm (0.57 in)
Supply Voltage 12 - 32 V DC
Power Consumption 25 W max
Operating Temperature 0° to +40°C (+32° to +104°F)
Storage Temperature -40° to +90°C (-40° to +194°F)
Waterproof Rating IP68 5 m (16 ft)
Compliance CE, FCC
Connector Diameter 14.5 mm (0.57 in)



Warranty Information

Two year manufacturer's warranty
