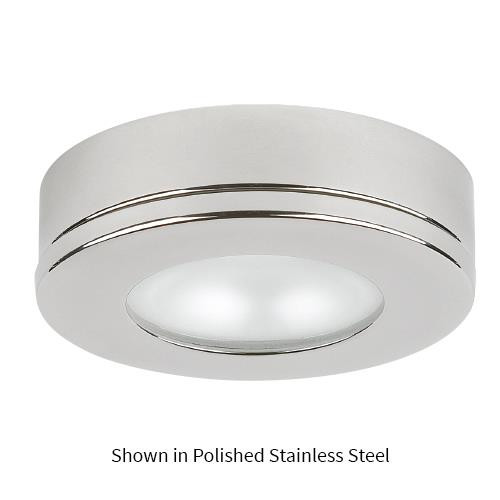

Hatteras LED with Base

The Hatteras PowerLED is a high flux LED spot with wide-flood light beam characteristics. The surface-mount model is a "puck" style light for applications with solid ceilings or for under-cabinet lighting. A built-in dimmer interface allows for effortless touch-control dimming using the ILIM80101 Dimmer.

Features & Benefits:

Low profile design for areas with limited ceiling space
Built in current-controlled driver with dimming interface
No radiated heat
Low power consumption
Solid-state circuitry (shock/vibration proof)
Multi-voltage (12V or 24V systems)
Completely sealed LED sub-assembly
Corrosion-proof trim ring
Choice of LED colors

Product Details

Lens Material:	Frosted glass
Trim Ring Diameter:	2.85" (72mm)
Base Diameter:	2.86" (73mm)
Fixture Height:	0.79" (20mm)
Voltage:	10-30VDC
Input Power (Watts):	3.2W
LED Engine:	1 x 3W High Flux LED with integrated LED driver
Beam Angle (FWHM):	83°
Correlated Color Temperature (CCT):	2800K
Color Rendering Index (CRI):	83
Lifetime Hrs (70% lm):	50,000 hrs (70% light output)
Electrical Protection:	Spikes (up to 200V)/Transient protection
Dimmer Module:	See ILIM80101
Mounting Method:	Screw-mount
Wire Size:	See Chart
Ingress Protection:	IP65
Manufacturer:	Imtra
