Ripple Bi-Color Power LED , 10-40VDC

Imtra Lights

$133.85
SKU:
81663
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

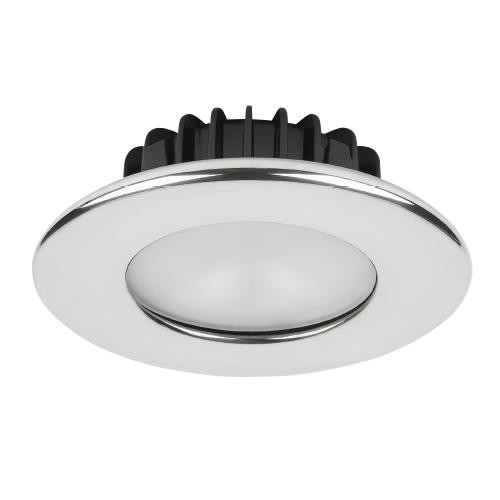

Ripple PowerLED, 10-40VDC, Polished SS

Featuring 2-wire power & dimming, Ripple easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs). Ripple offers single or bi-color dimming when paired with Imtra's single or dual channel PWM dimmer module. Ripple features a round bezel with rounded radius edge. Ripple is securely mounted with three screws and is ideal for hard ceilings (e.g. fiberglass or wood). It is a good choice for wet areas (e.g. hard tops, arches, walkway overhangs, shower stalls). Made in the USA and covered by a 5-year warranty!

  • Twist-on round stainless steel bezel design
  • Convenient 2-wire power & dimming (3-wires for Bi-Colors)
  • Bi-color dimming using single momentary switch
  • Integrated current controlled drive circuitry
  • Screw mount fastening for watertight installations
Trim Ring (Bezel) Finish/Material Polished SS
Housing Finish/Material Black Electrophoretic Aluminum
Lens Material Frosted glass
Trim Ring (Bezel) Dimensions 3.80" (96mm) dia
Cut-out Dimensions 2.40" (61mm)
Recessed Depth 1.05" (27mm)
Dimensions See dimensional drawing
Integrated Switch No
Input Voltage 10-40VDC
Halogen Equivalency 25W
Power Consumption 4.7W
Driver Integrated
Output Color

Warm White/Red, Warm White/Blue, Cool White/Red, Cool White/Blue

Luminous Flux 183 lms
Correlated Color Temperature (CCT) 2800K (White LED)
Color Rendering Index (CRI) 85
Lifetime Hours 50,000 hrs
Dimmer Compatibility ILIM80130, ILIM80140
Dimmer Control Interface Momentary Push-Button
Dimming Range 5-100%
Install Location Exterior (hard tops, overhangs, showers)
Ingress Protection IP65 (applies only to frontal water exposure, i.e. Exposed surface)
Class III
Electrical Protections Reverse Polarity, Transient & Spike Protection
Certifications & Compliance CE-EMC, ROHS
Manufacturer Imtra
Warranty 5 Years / 1 Year Finish



Available SKUs ILIM63301, ILIM63401, ILIM63501, ILIM63601

5 year manufacturer's warranty/ 1 year finish
