Corona LED Side Pin Replacement Bulb

Imtra Lights

$16.25
SKU:
69944
Weight:
0.15 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

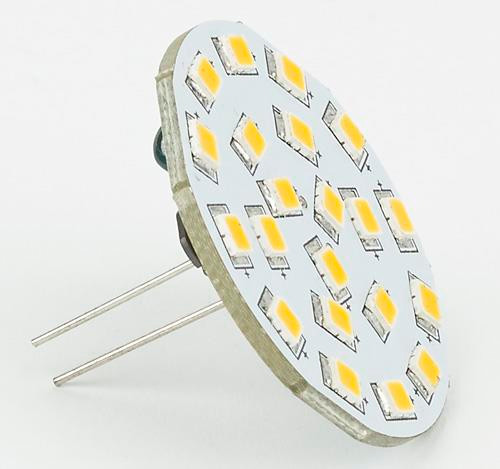

"Corona" LED Replacement Bulb, Warm or Cool White, 10-30VDC (3.0W), G4 Socket, Side Pin



At 270 lumens, this is our brightest warm white G4 LED bulb.  Proprietary PWM Constant-current drive and 15 x high output thermally-efficient SMD LEDs combine to give record setting output in a G4 form factor.  The extra wide diameter printed circuit board distributes the LEDs over a greater area, making this the ideal choice for larger spots and fixtures.

Note:  Check alignment of existing socket pin holes in your fixture.  If not horizontal, a realignment of socket may be necessary.



Features & Benefits:

  • 15 x  High Output SMD LEDs
  • Large diameter board for bigger fixture designs
  • Constant-current drive topology
  • Over-voltage protection
  • No radiated heat
  • Thermally efficient design
Fits Socket G4
Typical Applications Larger Ceiling Fixtures, Spots
Dimensions (Dia. x H) 1.38 in. (35mm) x 0.37 in. (9.35mm)
Length of Pins 0.47 in. (12mm)
Input Voltage 10-30VDC
Current Draw 250mA/12V
125mA/24V
LED Emitting Color Warm White
LED Type/Quantity 15 x SMD
Beam Angle (FWHM) 120°
Luminous Flux 270 lms
Warranty 2 Years

Available Models  ILSPG4-15W-B  ILSPG4-15C-B
