F-26 TouchLED Chart Light

Imtra Lights

Manufacturing lead time 4-6 weeks
1.50 LBS
Calculated at Checkout
Adding to cart… The item has been added

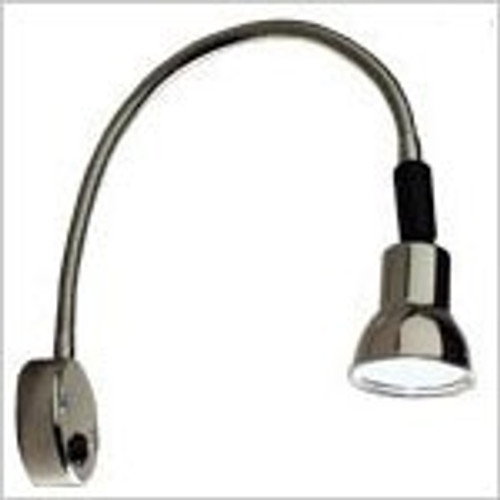

F-26 TouchLED Chart Light, 12" (300mm)


The F-26 TouchLED Chart Light features an umbilical (gooseneck) design and a silent, touch-activated on/off switch. This version features single color, cool white or red illumination and flat mounting base for table or dash mount installations.

Based on the TouchLED technology pioneered by our F-4 TouchLED, the F-26 features a different look and basic on/off function (without programable nightlight). The reinforced tight-coiled umbilical neck will maintain shape when bent, allowing it to be mounted on a bulkhead as well as on a table or dash.


Features & Benefits:

  • Flat mount base for table/dash mounting
  • No mechanical switches - touch activation
  • Current regulated LED driver
  • Flexible gooseneck design


Finish Black
Materials Stainless Steel, ABS, Electro-plated Steel
Head Dimensions 2.75 x 1.77 x .60" (70 x 45 x 15mm)
Base Dimensions 1.36" (34.5mm)
Arm Length 11.81" (300mm)
Input Voltage 10-30VDC
Power Consumption On: 100mA
Standby Mode: 2mA
Beam Angle (FWHM) 29°
LED Color Red or Cool White
Working Life 30,000 hrs
Electrical Protections Reverse Polarity, Surge Protection
Integral Switch Yes: Photo-sensor "TouchLED"
Mounting Method Screw-Mount
Ingress Protection IP40
Safety Standards Compliance CE-EMC
Warranty 3 Years


IL8020  IL8021  IL8024  IL8025
