Rugen Table Mount LED w/Switch & Dimmer, 10-30VDC, 300mm

Prebit Boat Lights

2.00 LBS
Calculated at Checkout
Adding to cart… The item has been added

Rugen Table Mount LED w/Switch & Dimmer, 10-30VDC, 300mm

10-30VDC, IP40, 3W, 300mm

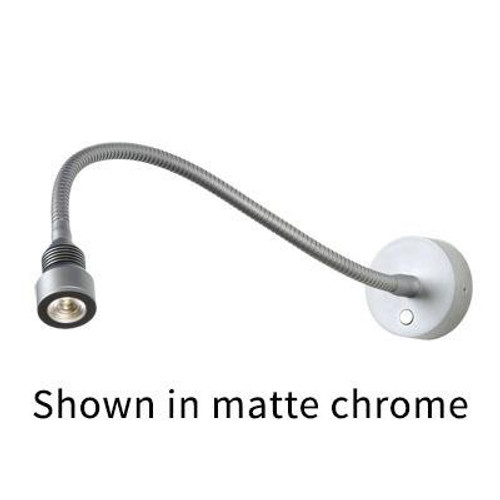

Rugen is an elegant and modern flex-arm table mount reading light which is rigid enough to also be installed against a bulkhead. Its warm white LED provides bright illumination for reading. Press twice on the built in switch and the color switches to a Red LED night light. Press and hold the switch to dim each color to desired intensity. The white LED is equivalent to a 20W halogen yet consumes just 3W of power.

  • Contemporary, yet elegant in design
  • Flexible brass coil neck with rotatable head
  • Switch between warm white or red night light
  • Infinitely variable dimming via integrated "soft" switch
Housing Finish/Material Shiny chrome/brass, Matte Chrome or Gold
Shade/Globe Finish Material Shiny chrome/brass, Matte Chrome or Gold
Lens Material Acrylic
Base Dimensions 2.17" (55mm) dia
Dimensions 0.79" (20mm) ht x 2.17" (55mm) dia
Extension Length 16.70" from mounting surface
Integrated Switch Yes (micropush-button)
Input Voltage 10-30VDC
Halogen Equivalency 20W
Power Consumption 3W
Driver DC-DC Integrated
Output Color Warm White/Red (switchable)
Luminous Flux 190 lms
Correlated Color Temperature (CCT) 3000K
Lifetime Hours 50,000 hr (L70)
Dimmer Control Interface Integrated "soft" touch push-button
Dimming Range 100%
Mounting Method Screws
Install Location Table top (or bulkhead)
Ingress Protection IP40
Class III
Electrical Protections Transient, Reverse Polarity
Certifications and Compliance CE, ROHS
Manufacturer Prebit
Warranty 3 Years / 1 Year Finish

Available SKUs ILPB24800005, ILPB24800007, ILPB24800009

Click here for dimensional drawing


3 year manufacturer's warranty/1 year finish
