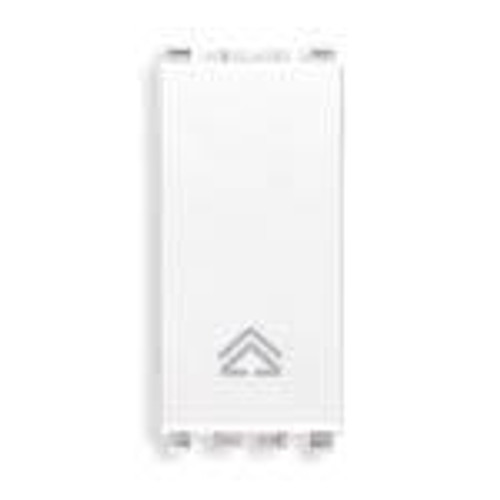

Vimar Idea Master Dimmer, 120-230V, Illuminable
Supply voltage 120-230V / 50-60 Hz for 40-500/40-800W incandescent lamps and 40-300/40-500VA ferromagnetic transformers, control and regulation with built-in, or from peripheral NO push buttons, Master function, TRIAC technology, LED pilot indicator for dimmer status. Push button is etched with a glow in the dark universal dimmer symbol.
- Switch on, regulation and switch off through built-in push button
- Lighting level is saved when switched off (unless there is a blackout).
- Soft start: ensures a gradual lighting from zero to maximum or preset lighting levels.
- Soft end: ensures a gradual passage from light to dark.
- LED indicator for dimmer status
- Protection against short-circuit
- MASTER-SLAVE function (see product sheet)
- TRIAC technology
Specifications:
| Color | White |
| Housing Finish/Material | Grey/Plastic |
| Recessed Depth | 1.61" (41.0mm) |
| Dimensions | 0.98" (24.8mm) x 1.97" (50mm) x 2.13" (54.1mm) |
| Number of Modules | 1 Module |
| Integrated Switch | Yes, push-button |
| Max Wattage | 120V/500W & 230V/1000W (resistive), 120V/300VA & 230V/500VA (inductive) |
| Input Voltage | 120VAC or 230VAC (50-60Hz) |
| Dimmer Compatibility | Incandescent/Halogen |
| Dimmer Control Interface | Built-in push button control |
| Dimming Range | 0-100% |
| Install Location | Rear Loading |
| Electrical Protections | Short circuit, thermal |
| Certifications & Compliance | CE, NOM, ST |
| Manufacturer | Vimar |
Available Models VM16608 VM16608.B
