Emden Medium LED Downlight

Imtra Lights

$290.77
SKU:
99016
Availability:
Manufacturing lead time 4-6 weeks
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

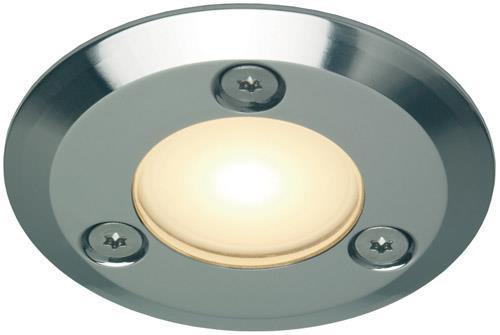

Emden Medium LED, Stainless Steel, Warm, 11-30VDC, IP67

A robust precision made LED downlight fixture built for harsh environments.

This model from the Emden family is a mid-sized LED down light fixture with light output equal to a 25W halogen.  It also has full dimming capability when wired to any N/O momentary switch.  Add up to 15 medium or large "slave" Emden models (see model ILPB23303105 or ILPB23304015) to complete your dimmed circuit.  Engineered to the highest standards and milled from marine grade 316 stainless steel, Emden will provide years of maintenance free top performance.  Completely sealed from the elements, Emden may be installed in areas where water exposure is the norm.  Emden's low profile bezel edge and high polish finish provide a style element that will surely be appreciated by the meticulous yacht owner and his/her guests.



Features & Benefits:

  • Machined 316 stainless steel construction
  • Integrated 11-30VDC constant current LED driver
  • Full dimming with remote N/O momentary switch
  • Controls up to 15 Emden slave fixtures (see ILPB23303105 or ILPB23304105)
  • Pleasing wide-angle warm white illumination



*The "Slave" option indicates the standard light that is dimmable with the "master" light. 15 slaves can be dimmed with one master.



Trim Ring (Bezel) Finish/Material Polished stainless steel
Housing Finish/Material Anodized aluminum/AISI 316 stainless steel
Lens Material Frosted glass
Trim Ring (Bezel) Dimensions 3.35" (85mm)
Cut-Out Dimensions 2.36" (60mm)
Recessed Depth 0.67" (17mm)
Input Voltage 11-30VDC
Power Consumption 3W
Driver Integrated
Output Color Warm white
Luminous Flux 175 lm
Correlated Color Temperature (CCT) 3100K
Color Rendering Index (CRI) 84
Beam Angle 100°
Lifetime Hours 50,000
Dimmer Compatibility Integrated
Dimmer Control Interface N/O momentary switch
Mounting Method Screws
Ingress Protection IP67
Class F-Rated, Class III
Electrical Protections Transients, reverse polarity
Certifications & Compliance CE, ROHS
Manufacturer Prebit - Germany
Warranty 2 Years



ILPB23303105  ILPB23303205
