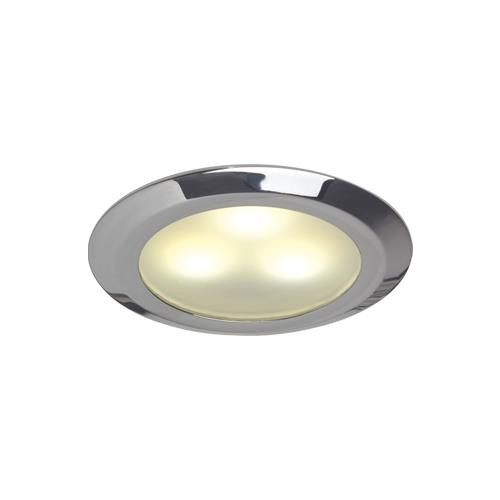

Leer LED Downlight, 10-30VDC
Master (Dimmable), IP20
The Leer recessed downlight is offered in chrome, matte chrome, or gold plated brass. The housing is a mere 0.70" deep so it is a good choice for ceilings with limited dept behind the headliner. This "master" model features a very small momentary dimmer switch in the center of the lens so it can be controlled right at the light without the need for installing a separate dimmer and switch. The "master" may be combined with up to 15 "slave" models (see ILPB22923105) allowing the entire group to be turned on/off and dimmed simultaneously. Control of the group can be done at the "master" or via a remotely installed single throw momentary switch.
- Bright warm white illumination
- Wide 90 dg viewing angle
- Integrated 10-30VDC constant current LED driver
- Full dimming at the light or via remote switch
- Controls up to 15 Leer slaves downlights (see ILPB22923105)
| Housing Finish/Material | Available in Chrome, Matte Chrome or Gold Plated Brass |
| Shade Dimensions | 2.76" (70mm) x 0.14" (3.5mm) |
| Lens Material | Frosted acrylic |
| Cut-Out Dimensions | 2.44" |
| Recessed Depth | 0.67" (17mm) |
| Input Voltage | 10-30VDC |
| Power Consumption | 3W |
| Driver | Integrated, current-controlled |
| Output Color | Warm white |
| Luminous Flux | 175 lm |
| Correlated Color Temperature (CCT) | 3000K |
| Color Rendering Index (CRI) | 85 |
| Beam Angle | 90° |
| Lifetime Hours | 50,000 |
| Dimmer Compatibility | Integrated (requires momentary switch) |
| Dimmer Control Interface | Integrated switch (or remote momentary switch) |
| Mounting Method | Springs |
| Install Location | Interior, ceilings |
| Ingress Protection | IP20 |
| Class | Class III |
| Electrical Protections | Transients, reverse polarity |
| Certifications & Compliance | CE, ROHS |
| Manufacturer | Prebit |
| Warranty | 3 Years / 1 Year Finish |
SPECIAL ORDER DELIVERY 3-4 WEEKS
Available SKUs ILPB22943105, ILPB22943107, ILPB22943109
