Leer Bi-Color LED (Master), 10-30VDC
Master (Dimmable), IP20

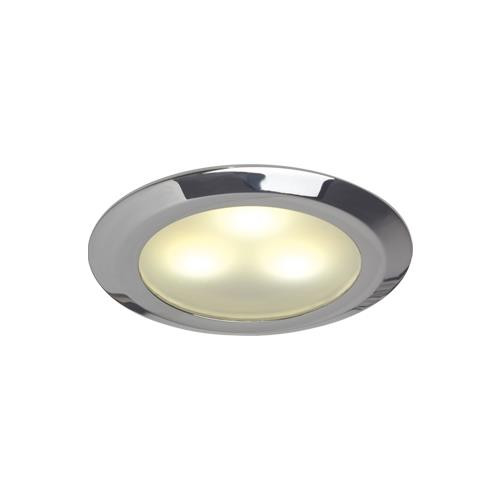

The Leer bi-color recessed downlight is offered in chrome, matte chrome, or gold plated brass. The housing is a mere 0.70" deep so it is a good choice for ceilings with limited depth behind the headliner. This "master" model has a built in momentary switch and the entire group (of Slave units) can be controlled from there. Or you may wire in unlimited remote momentary switches for control from any point in the room! One Leer master can control up to 15 Leer slaves.
For dimmed circuits: To switch the lights on or off, press briefly on either the master's built-in switch or a remote momentary switch. Brightness can be adjusted by holding down the switch. To reverse the dimming phase, release the switch briefly and press again within one second. A double click changes between the two colors. Lights that are switched off can always be switched on to red light with a double click. If Leer single color slaves are used in the circuit, they will completely turn off when switching to the red mode.
- Switch between warm white & red illumination
- Wide 90° viewing angle
- Integrated 10-30VDC constant current LED driver
- Master unit can control up to 15 slaves (see ILPB22963005)
| Housing Finish/Material | Chrome Plated Brass, Matte or Gold |
| Trim Ring (Bezel) Dimensions | 2.76" (70mm) x 0.14" (3.5mm) |
| Lens Material | Frosted acrylic |
| Cut-Out Dimensions | 2.44" (62mm) |
| Recessed Depth | 0.70" (18mm) |
| Input Voltage | 10-30VDC |
| Power Consumption | 3W |
| Driver | Integrated, current-controlled |
| Output Color | Warm white/red, Warm White/Blue |
| Luminous Flux | 175 lm |
| Correlated Color Temperature (CCT) | 3000K/Red |
| Halogen Equivalency | 20W |
| Color Rendering Index (CRI) | 85 |
| Beam Angle | 90° |
| Lifetime Hours | 50,000 |
| Dimmer Control Interface | Integrated swith (or remote momentary switch) |
| Mounting Method | Springs |
| Install Location | Interior, ceilings |
| Ingress Protection | IP20 |
| Class | Class III |
| Electrical Protections | Transients, reverse polarity |
| Certifications & Compliance | CE, ROHS |
| Manufacturer | Prebit |
| Warranty | 3 Years / 1 Year Finish |
Please note this product is a SPECIAL ORDER and delivery can take up to 4 weeks.
Available SKUs ILPB22963105, ILPB22963107, ILPB22963109, ILPB22863105, ILPB22863107, ILPB22863109
