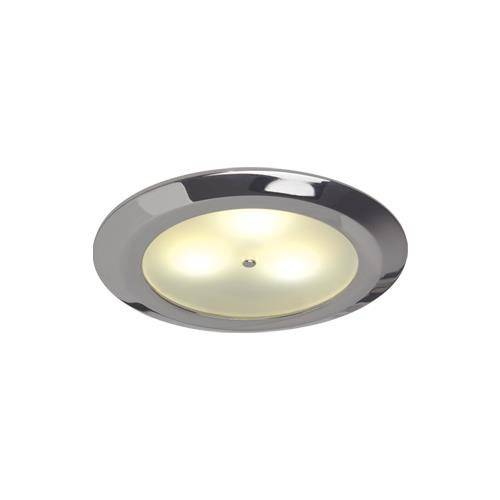

Leer LED Downlight (Slave), 10-30VDC
The Leer recessed downlight is offered in chrome, matte chrome, or gold plated brass. The housing is a mere 0.70" deep so it is a good choice for ceilings with limited dept behind the headliner. It may be wired to any remote on/off switch or when wired to the Leer "Master" (model ILPB22943105) it can be fully dimmed. A maximum of 15 slaves may be paired with any master unit. Control (i.e. dimming) of the Leer slaves can be done right at the "master" or via a remotely installed single throw momentary switch.
- Bright warm white illumination
- Wide 90° viewing angle
- Integrated 10-30VDC constant current LED driver
- Full dimming when paired with a master (see ILPB22943105)
| Housing Finish/Material | Available in Chrome, Matte Chrome or Gold Plated Brass Finish |
| Trim Ring (Bezel) Dimensions | 2.76" (70mm) x 0.14" (3.5mm) |
| Lens Material | Frosted acrylic |
| Cut-Out Dimensions | 2.44" (62mm) |
| Recessed Depth | 0.70" (18mm) |
| Input Voltage | 10-30VDC |
| Power Consumption | 3W |
| Driver | Integrated, current-controlled |
| Output Color | Warm white |
| Luminous Flux | 175 lm |
| Correlated Color Temperature (CCT) | 3000K |
| Halogen Equivalency | 20W |
| Color Rendering Index (CRI) | 85 |
| Beam Angle | 90° |
| Lifetime Hours | 50,000 |
| Dimmer Compatibility | See Leer Master (ILPB22943105) |
| Dimmer Control Interface | N/O single throw momentary switch |
| Mounting Method | Springs |
| Install Location | Interior, ceilings |
| Ingress Protection | IP20 |
| Class | Class III |
| Electrical Protections | Transients, reverse polarity |
| Certifications & Compliance | CE, ROHS |
| Manufacturer | Prebit |
| Warranty | 3 Years / 1 Year Finish |
SPECIAL ORDER DELIVERY 3-4 WEEKS
Available SKUs ILPB22923105, ILPB22923107, ILPB22923109
3 year manufacturer's warranty/1 year finish
