"Mini" LED Bulb BA15S

Imtra Lights

0.06 LBS
Calculated at Checkout
Adding to cart… The item has been added

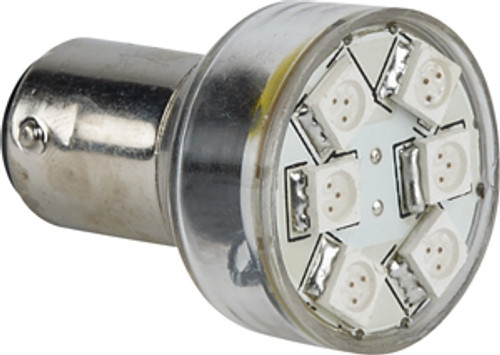

"Mini" Bayonet LED Replacement Bulb, 10-30VDC (1.5W), Directional, BA15s Socket

The "Mini" Bayonet is the perfect LED replacement bulb for back-mounted single-contact bayonet sockets commonly found in traditional bell-shaped reading lights and chart lamps.  It is also offered with BA15d double contact (1142) base as well.  This LED bulb is designed to work with either 12VDC or 24VDC systems.

Features & Benefits:

  • High output SMD LEDs
  • Constant-current drive topology
  • Very low power consumption
  • Over-voltage protection
  • No radiated heat
  • Wide voltage input range
  • Optimized viewing angle for reading & chart lights
Fits Socket: Bayonet BA15s (#1156)
Typical Applications: Reading and Chart Lights
Dimensions: 1.05 in. (26.6mm) x 1.43 in. (36.3mm) incl. base
Input Voltage: 10-30VDC
Power (Watts): 1.5W
Current Draw: 125mA/12V
LED Emitting Color: Warm White
LED Type/Quantity: 6 x SMD LEDs
Beam Angle (FWHM): 120º (3 directions)
Light Output (Lumens): 72 lms
Warranty: 2 Years

Available Models : ILBA1156-06W
